Arduino Source Code
This source code is provided for customers who want to customise the
functionality of the Top16 using Arduino (tm) IDE.
Top16-II
Arduino 'nano' (tm) architecture.
Arduino Settings
Board: Arduino AVR->Arduino Nano
Project version 16-Sep-2015

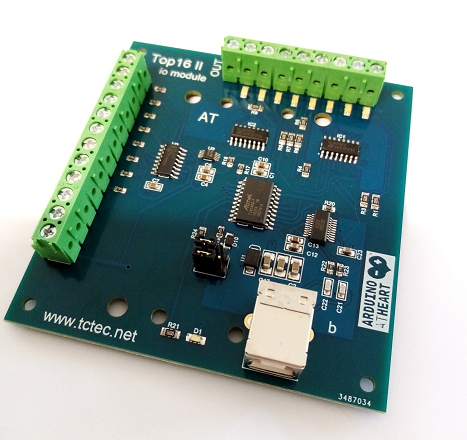

Top16-II AT
ATTiny x06 microprocessor.
The board is an 'Attiny' in the MegaTinyCore library, developed by
Spence Konde
Using the new IDE version 2.X

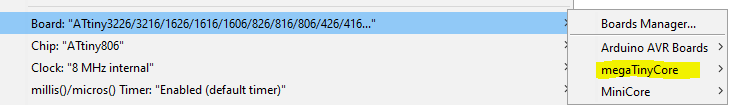

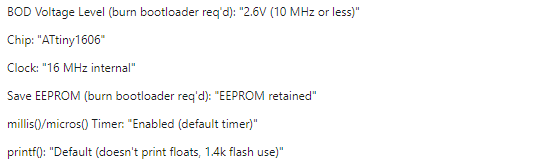

Arduino project settings:
ATTiny806 or ATTiny1606
no bootloader
Clock: 8MHz internal
millis/micros enabled
Project hardware version a and b (updated 15-Mar-2023)
Project hardware version c
Uploading:
The board does not use a 'bootloader'. It is programmed natively using the
onboard USB to serial hardware and "SerialUPDI"
Programming is enabled using the 2 Jumper links
