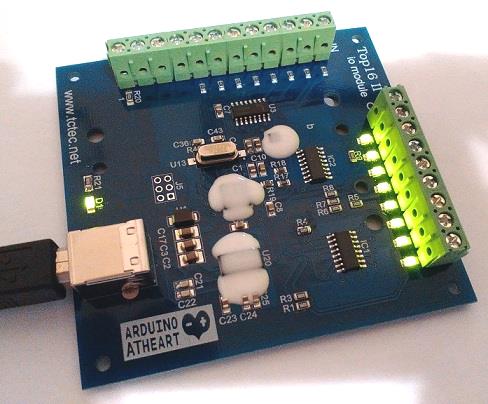

TOP16 II
Digital and Analog Input and Output module
Arduino compatible
Re-program and customize using Arduino programming environment
16 Bit analog inputs, internally calibrated for accurate voltage measurement.
8 X Current sinking (switch to ground) outputs, 250mA to 30 Volts
Individual PWM control 4 outputs (AT version, all outputs).
8 X Inputs (0 to 5 Volt single-ended 16 bit)
USB powered

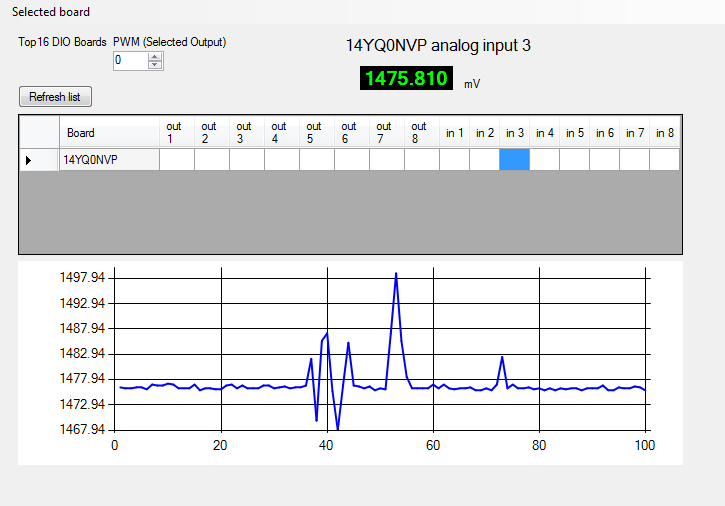

Top16 II Manager Installer version 1.4 (updated 06-Nov-2015)
Windows application for Testing and configuring Top16 II boards.
User Manual TOP16 II AT (PDF)
Serial (Com Port) command set TOP16 II AT
TOP16 IIAT Python Example developed on Linux (raspberry pi) 19-Nov-2023
TOP16 IIAT c++ linux example using comport (serial port) 19-Nov-2023
Pre-AT version
User Manual (pdf)
Serial (Com Port) command set
DotNET Class Library/Dll Version 1.1 (updated 06-Nov-2015)
Add this to your DotNET project (add reference)
Visual Basic DotNET example project (updated 16-Mar-2016)
Arduino Source Code
Only for customizing operation of Top16-II
Board Type = Arduino NANO
C# DotNET example (updated 04-July-2017)
